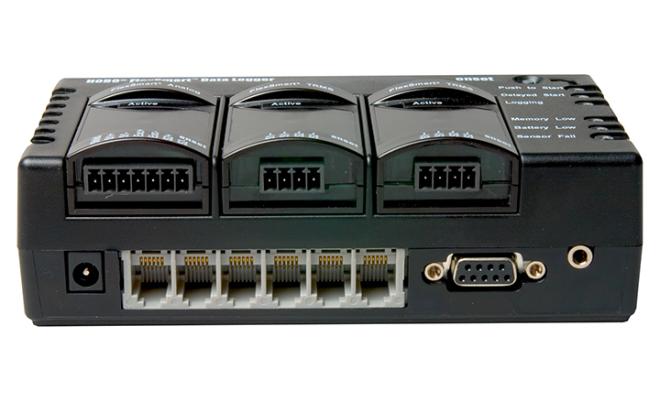

HOBO H22 Energy Data Logger

₹78,000.00

HOBO H22 Energy Data Logger

Name: HOBO H22 Energy Data Logger
SKU: 1402
Availability: InStock

₹78,000.00

Specifications

No category

Operating range: -20° to 50°C with alkaline batteries (-4° to 122°F with alkaline batteries)
-40° to 60°C with lithium batteries (-40° to 140°F with lithium batteries)
Sensor inputs: Three FlexSmart multi-channel modules and up to 6 Smart Sensors (which may have multiple parameters/channels)
Sensor connectors: Six RJ-12 Smart Sensor jacks plus 3 FlexSmart module slots
Communication: RS-232 via 3.5 mm serial port or/and 9-pin D-Sub connector
Dimensions: 15.6 cm x 8.4 cm x 4.6 cm (6.13″ x 3.31″ x 1.81″)
Weight: 435 g with batteries (15.23 oz with batteries)
238 g without batteries (8.33 oz without batteries)
Memory: 512K nonvolatile flash data storage
Memory modes: Stop when full; wrap when full
Operational indicators: Six indicators provide logging and sensor network status
Logging interval: One second to 18 hours, user-specified interval (2-second minimum for two-channel S-FS-TRMSA operation)
Sensor excitation: 12 V DC at 200 mA total, with user-programmable warmup time on a per-channel basis
Battery life: One year typical use (up to 75 mA excitation with 10-minute or longer logging Interval and 1-second warmup time)
Battery type: Eight standard AA alkaline batteries included (for operating conditions -20°C to 50°C)
Eight standard AA alkaline batteries included (for operating conditions -4°F to 122°F)
Optional AA lithium batteries available for operating conditions of -40° to 60°C.
Optional AA lithium batteries available for operating conditions of -40° to 140°F.
External power: Supports optional 13.6 V DC regulated AC Wall Adapter Connector. Internal batteries may remain installed. Alternatively, an automotive battery or 9-12 V DC regulated Wall Adapter may be used, but it is recommended to remove the internal batteries since they will discharge to the level of the external supply.
Time accuracy: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (0 to 2 seconds for the first data point and ±5 seconds per week at 77°F)
Logging mode: Immediate, timed delay, or trigger (button-push) start options; supports sampling intervals for some sensors
Data communication: Current readings while logging; read out while logging; read out when stopped

Category: Applications Tags: H22-001, HOBO H22 Energy Data Logger

Description
Reviews (0)

Description

Multi-Channel Data Logger

Monitor energy and industrial equipment with this 15-channel data logger to quickly detect and address issues relating to HVAC, machinery, and other systems.

Overview

This 15-channel data logger lets energy and facility managers monitor energy and industrial equipment to quickly and easily detect and address a variety of issues relating to HVAC, machinery, and other systems. A modular device, the HOBO H22-001 Energy Data Logger is more economical than its alternatives because it eliminates the need for a toolbox full of data loggers.

Deploying this logger with a variety of pre-defined plug-and-play smart sensors create a robust monitoring system, and it’s compatible with HOBOware software, so researchers can conduct effective data analysis in minutes.

Features

Flexible data logger records up to 15 channels of more than a dozen measurements
Provides 12v excitation for third-party sensors
Pre-configured Smart Sensors get you started fast

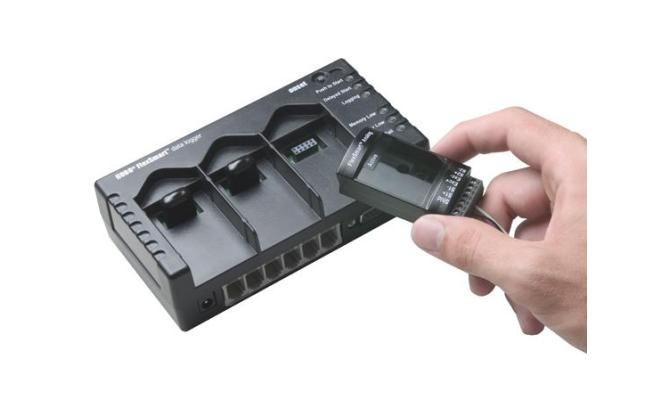

Signal conditioning modules retain configurations until you change them, providing plug-and-play convenience for commonly used sensors
Flexible power options include battery operation for AC power adapter
