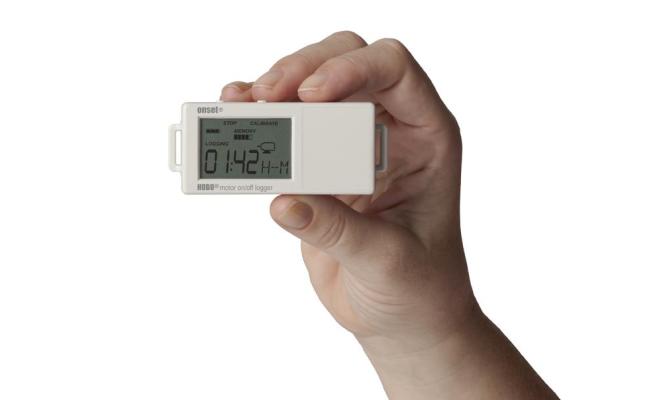

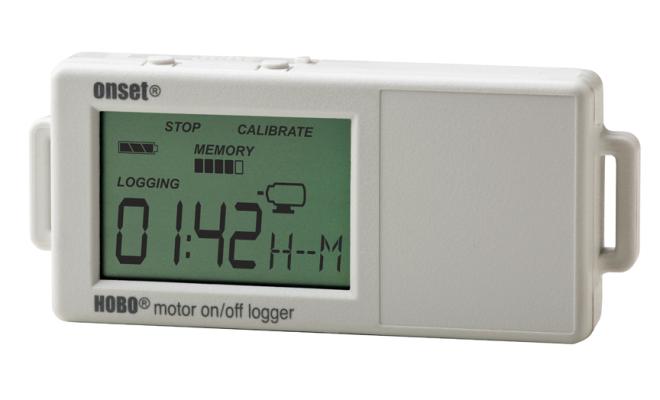

HOBO Motor On/Off Data Logger

₹20,500.00

HOBO Motor On/Off Data Logger

Name: HOBO Motor On/Off Data Logger
SKU: 932
Availability: InStock

₹20,500.00

Specifications

Internal Motor Sensor

AC Magnetic Field Threshold: >40 mGauss at 60 Hz

External Input

External Contact Input: Electronic solid state switch closure or logic driven voltage output
Range: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)
Maximum State and Runtime Frequency: 1 Hz
Solid State Switch Closure: Input Low: < 10 KΩ; Input High: > 500 KΩ
Internal Weak Pull-Up: 100 KΩ
Input Impedance: Solid state switch closure: 100 KΩ pull up

Logger

Resolution: Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event
Memory Modes: Wrap when full or stop when full
Start Modes: Immediate, push button, date & time, or next interval
Stop Modes: When memory full, push button, or date & time
Time Accuracy: ±1 minute per month at 25°C (77°F) (see Plot A)

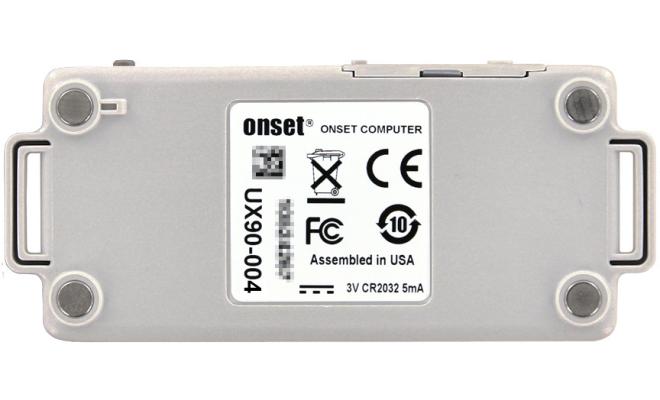

Power Source: One 3V CR2032 lithium battery and USB cable
Battery Life: 1 year, typical with logging intervals greater than 1 minute and normally open contacts
Memory: UX90-004: 128 KB (84,650 measurements, maximum)
UX90-004M: 512 KB (346,795 measurements, maximum)
Download Type: USB 2.0 interface
Full Memory Download Time: 10 seconds for 128 KB; 30 seconds for 512 KB
Logger Operating Range: Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 3.66 x 8.48 x 1.52 cm (1.44 x 3.34 x 0.6 in.)
Weight: 30 g (1.06 oz)
Environmental Rating: IP50

Categories: Indoor, Products Tags: HOBO Motor On/Off Data Logger, indoor, UX90-001, UX90-004

Description
Reviews (0)

Description

Records motor on/off conditions within an AC magnetic field with its internal sensor, or mechanical dry contact closures from external sensing devices.

Overview

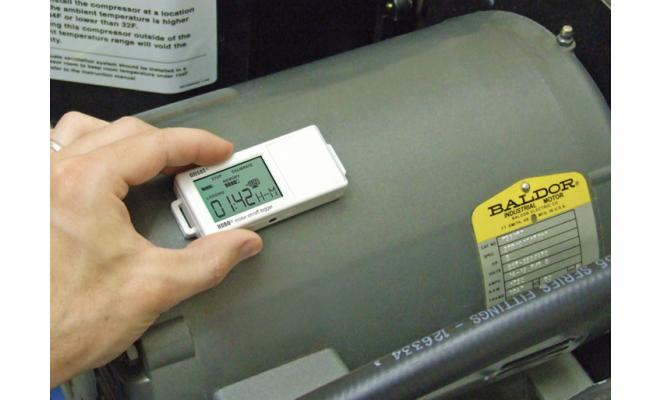

Records motor on/off conditions within an AC magnetic field with its internal sensor, or mechanical dry contact closures from external sensing devices. This logger is ideal for tracking the usage and runtimes of motors, pumps, compressors, and other equipment.

Item number UX90-004M has been discontinued.

Features

Dual internal motor sensors gives better sensitivity for well-shielded motors
External input for measuring mechanical contact closures when signal strength is low
Auto-calibration of ON and OFF thresholds ensures reliable readings
Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
