InTemp 365-Day Cryogenic Temperature Monitoring (CX703)

80,500.00

InTemp 365-Day Cryogenic Temperature Monitoring (CX703)

80,500.00

Specifications
Temperature Probe

Sensor Range: -200° to 50°C (-328° to 122°F); To ensure insulation integrity, avoid flexing the wire during exposure to temperatures below -100°C (-148°F)
Accuracy: ±1.8°C from -200° to -90°C (±3.2°F from -328° to -130°F)
±1.0°C from -90° to -10°C (±1.8°F from -328° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from 14° to 122°F)
Resolution: 0.013°C at 25°C (0.023°F at 77°F)
NIST Calibration: Single-point NIST calibration, probe only @ -195C
Cable Length: 1.5 m (4.92 ft)
Probe Dimensions: Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter

Logger

Logger Operating Range: -30° to 50°C (-22° to 122°F)
Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Type: Multiple use
Duration: 365 days
Shelf Life: Up to 1 year
Logging Rate: 1 second to 18 hours
Battery: CR2450 3V lithium, not replaceable. Battery life is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life
Memory: 16,000 measurements
Full Memory Download Time: Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions: 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight: 25.5 g (0.90 oz)
Environmental Rating: IP65

Add to Wishlist
Add to Wishlist

Description

GXP compliant cryogentic, ultra-low data logger ideal for Life Science and Pharmaceutical Cold Chain logistics and storage monitoring. Meets global Cold Chain, FDA, and EU regulatory requirements.

Overview

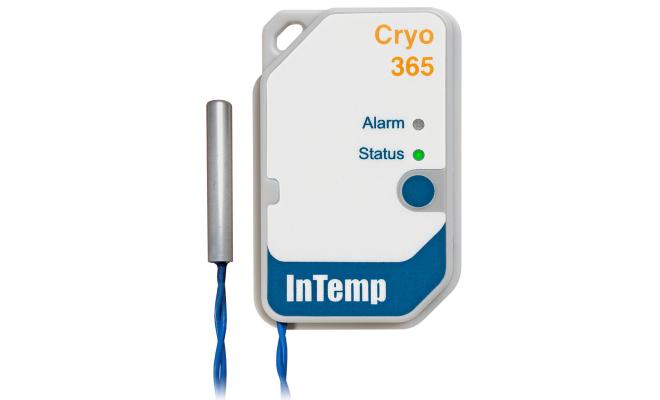

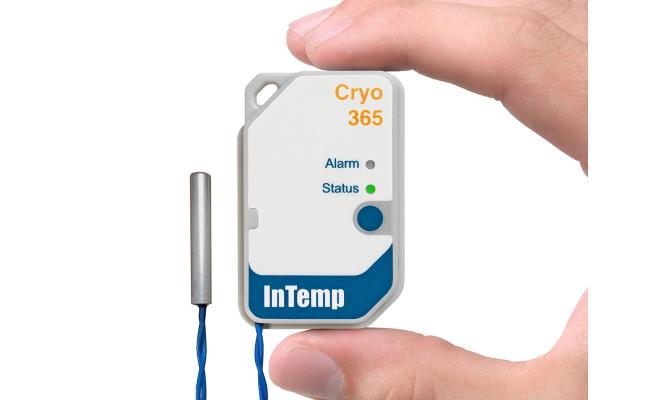

The InTemp CX703 Cryogenic data logger is a low-cost Bluetooth-enabled multiple-use logger that records temperature data for up to 365 days. The CX703’s built-in 1.5m probe measures temperatures as low as -200°C (-328°F) and includes a protective sheath to prevent accidental cutting of the cable.

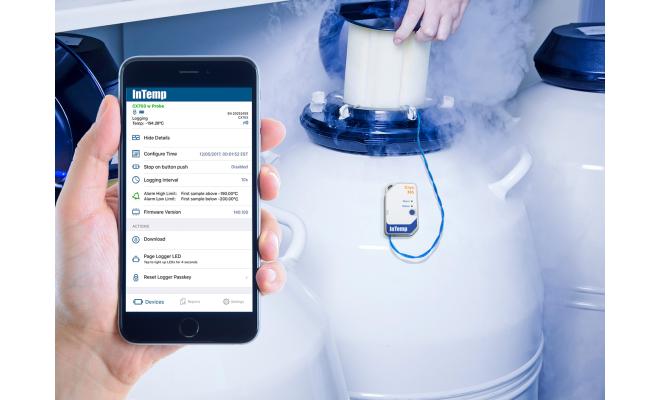

Using the InTemp® app on your mobile device, you can easily configure the CX703 with one of multiple preset configurations, or set up a custom configuration. The logger has a built-in alarm to alert you to excursions. Logger reports can be quickly downloaded to your phone or tablet and uploaded to an InTempConnect® account, where you can analyze and export data as needed.

With the optional CX Gateway, you can get real-time notification of temperature excursions and automatically download data from loggers within range of the device. Learn more about the InTemp CX Gateway.



Learn more about our compatible mobile and cloud solutions:

InTempConnect A cloud-based data command-center control for monitoring all loggers throughout your global supply chain, including configuration, user management & data reporting

InTemp App A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect

InTempVerify A free mobile app that enables data downloads by anyone—anywhere, anytime





Features
  • Single-Point ILAC/ISO17025 NIST Certificate of Calibration, valid for one year from date of purchase
  • IATA Battery compliant
  • Record up to 14,000 data points
  • Anti-cut sheath
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • Compact and lightweight – ideal for shipping pharmaceuticals
  • No need to open containers to access data
  • Ensures secure data via encrypted technology
