MicroRX Water Level Station

₹150,700.00

MicroRX Water Level Station

₹150,700.00

Specifications

Operating Range	RX2103: -40° to 60°C (-40° to 140°F) RX2104: -20° to 60°C (-4° to 140°F)
Smart Sensor Connectors	5
Smart Sensor Network Cable Length	100 m (328 ft) maximum
Smart Sensor Data Channels	Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate	1 minute to 18 hours
Time Accuracy	±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source	RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1) RX2104: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
Battery Life	RX2103 Battery Life: Battery life with daily connections: RX2103: 1 year with 2 minute logging Battery life with hourly connections and 1 minute logging: RX2103: 2 months Note: Deployments in areas with weak cellular strength could reduce battery life. RX2104 Battery Life: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life. Maximum connection rates with built-in solar panel, in full sun: 10 minute connections year round for latitudes less than ±40° 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter Maximum connection rates with external 5W or 15W solar panels: 10 minute connections year round, in full sun Connection rate with external solar panels may be less if deployed in partial sun Battery life without solar recharging, with hourly connections and 1 minute logging: RX2104: 2 months
Memory	16 MB, 1 million measurements, continuous logging
Alarm Notification Latency	Logging interval plus 2–4 minutes, typical
Enclosure Access	Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD	LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials	Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions	19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)
Weight	678 g (23.9 oz)
Mounting	Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating	Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio	GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz

Categories: Products, Underwater Tags: MicroRX Water Level Station, RX2100-WL, RX2102

Description
Reviews (0)

Description

Award-winning cellular, remote water level monitoring solution for dam sites, stormwater, floodwater, irrigation, hydrologic, and environmental applications.

Overview

Enabled with cellular communication, this award-winning remote water level monitoring station completes calculations onsite and sends notifications of critical conditions via cellular plans to LI-COR Cloud (formerly HOBOlink software). Ideal for stormwater, floodwater, irrigation, hydrologic, and environmental applications, this remote monitoring solution comes with pre-programmed water flow formulas for select weirs, flumes, and a stage discharge table that allow easy and intuitive configuration.

This compact and durable station, together with the non-vented water level sensor, provides reliable monitoring, even when deployed in harsh conditions. Water flow and accumulated rainfall calculations, which are performed directly on the station at time of measurement, trigger immediate notifications of critical water level conditions.

The optional integrated solar panel or battery power, with a wide range of plug-and-play smart sensors, supports flexible environmental monitoring.

Features

Station-side alarms for water flow and accumulated rainfall triggered at time of measurement
Non-vented ceramic water level sensor with a choice of four ranges
Interchangeable, Kevlar-reinforced water level sensor cables
Integrated barometric pressure sensor
Compact IP66/NEMA 4X enclosure

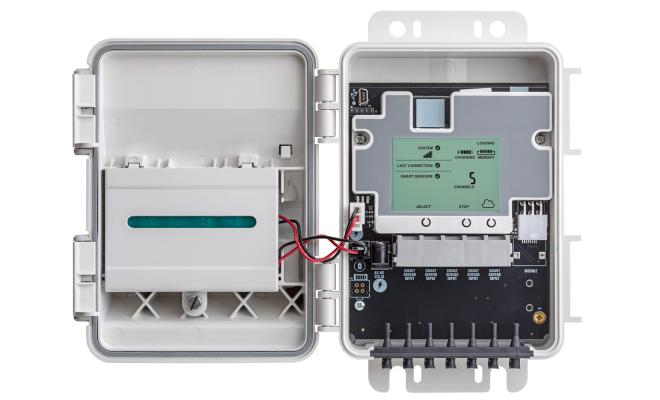

Built-in LCD confirms proper setup and operation
Two power options:
- Integrated 1.7 W solar panel with rechargeable battery pack
  - 5 W and 15 W external solar panels can be added (RX2104 only)
- User-replaceable AA lithium batteries
Inputs for five plug-and-play sensors
Up to 10-minute connections rates via 4G cellular data plans
Cloud-based monitoring and data access through HOBOlink
Available with stainless-steel or titanium sensor ends
3-point NIST-traceable calibration certificate included for the water pressure sensor
