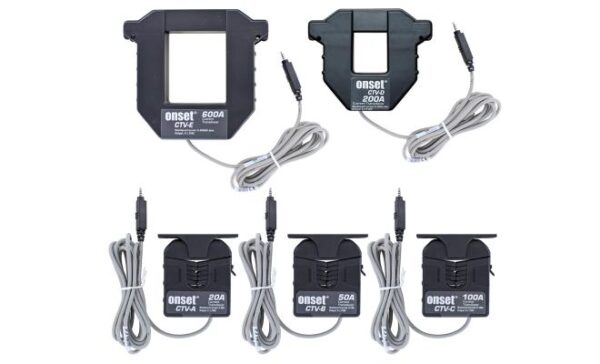

Self-Describing Current Transformer Sensor

₹31,500.00

Self-Describing Current Transformer Sensor

Name: Self-Describing Current Transformer Sensor
SKU: 1328
Availability: InStock

₹31,500.00

Specifications

Current Range: see table
Accuracy: ±2.1% of full scale (includes logger accuracy)
Response Time: see table
Input Current: AC current, sine wave, single-phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Output: 0-2.5 V DC
Voltage Rating: 600 V AC
Temperature Rating: see table
Construction: Molded plastic housing for indoor use per UL508
Cable: 1.8 m (6 ft.)
Window Size: see table
Dimensions: see table

Part No.	Current Range (Amps AC)	Response Time (milliseconds) (from 10% to 90% of Amplitude)	Dimensions
Part No.	Current Range (Amps AC)	Response Time (milliseconds) (from 10% to 90% of Amplitude)	Window Size	Outer Length	Outer Width	Height

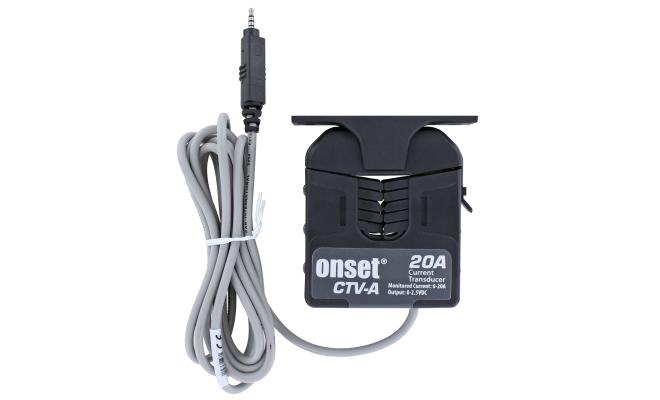

SD-CT-020	2–20	440	28 x 20 mm (1.1 x 0.8 in.)	79mm (3.1 in.)	71mm (2.8 in.)	36mm (1.4 in.)
SD-CT-050	5-50	200	28 x 20 mm (1.1 x 0.8 in.)	79mm (3.1 in.)	71mm (2.8 in.)	36mm (1.4 in.)
SD-CT-100	10-100	100	28 x 20 mm (1.1 x 0.8 in.)	79mm (3.1 in.)	71mm (2.8 in.)	36mm (1.4 in.)
SD-CT-200	20-200	450	39 x 32 mm (1.54 x 1.26 in.)	100mm (3.92 in.)	120mm (4.72 in.)	29mm (1.14 in.)

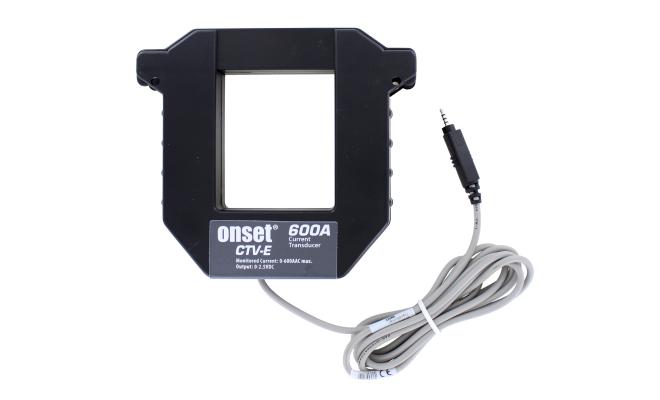

SD-CT-600	60-600	490	74 x 62 mm (2.92 x 2.46 in.)	135mm (5.3 in.)	150mm (5.91 in.)	28mm (1.12 in.)

Categories: Indoor, Products Tags: SD-CT-020, SD-CT-050, SD-CT-100, SD-CT-200, SD-CT-600, SD-CT-xxx, Self-Describing Current Transformer Sensor

Description
Reviews (0)

Description

For use with HOBO MX1104 and MX1105 Multi-Cchannel data loggers, this split-core AC current transformer offers integrated strain relief, so the probe is secured to the logger.

Overview

For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this split-core AC current transformer offers integrated strain relief, so the probe is secured to the logger. And it features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.

Features

Self-Describing technology for quick, easy setup

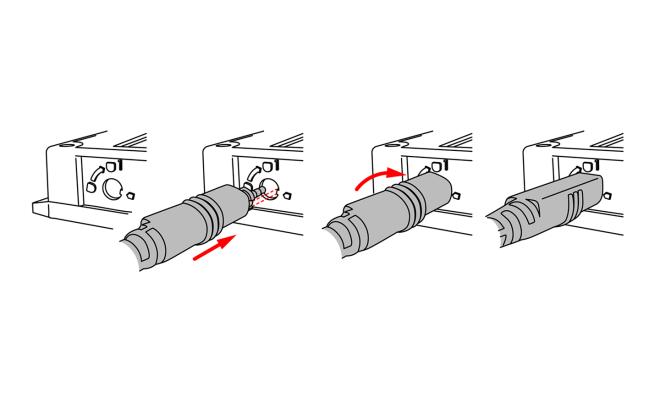

Locking jack to ensure sensor is connected and stays connected

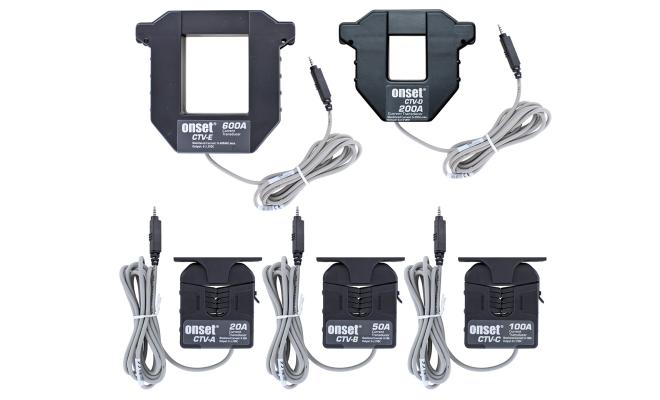

Available in 5 ranges: 2-20, 5-50, 10-100, 20-200, 60-600
Accuracy of ±2.1% of full scale from 10% to 100%
AC current, sine wave, single-phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Cable length: 1.8 m (6 ft)
UL Listed
