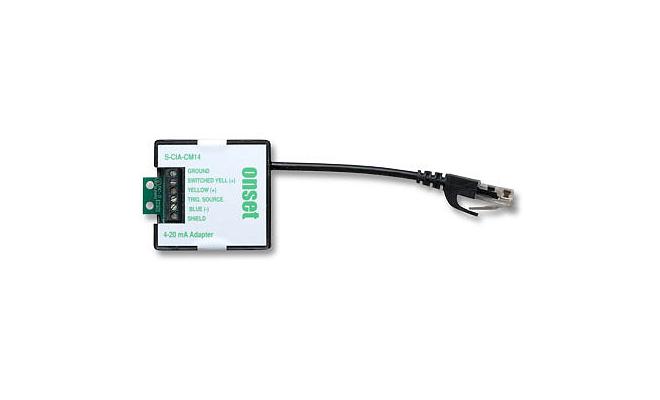

12-bit 4-20 mA Input Adapter Sensor

₹19,500.00

12-bit 4-20 mA Input Adapter Sensor

Name: 12-bit 4-20 mA Input Adapter Sensor
SKU: 1354
Availability: InStock

₹19,500.00

Specifications

Measurement range: 4-20 mA (measures down to 0 mA to detect error condition)
Operating temperature range: -40° to 75°C (-40° to 167°F)
Accuracy: ±40 µA ±0.3% of reading (over operating temperature range)
Resolution: ±4.93 µA
Input impedance: 124 ohms (differential input)
Sensor trigger source: Voltage: 2.5 V ±2.4%; maximum current: 1 mA
Warm-up time: 300 ms ±3% (fixed)
Measurement time: 16.6 ms ±3% to filter out 60 Hz noise
Cable length: 14 cm (5.5 inch)

Category: Applications Tags: 12-bit 4-20 mA Input Adapter Sensor, S-CIA-CM14

Description
Reviews (0)

Description

Overview

Interfaces with any sensor providing a 4-20 mA signal to connect to HOBO stations compatible with Smart Sensors. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering that improves measurement accuracy with 32 readings/sample and 60 Hz noise rejection.

Features

12-bit resolution
Digital filtering improves measurement accuracy with 32 readings/sample; 4-20 mA adapter has 60 Hz noise rejection
Measurement averaging over logging interval further enhances accuracy
Plug-in modular connector for easy interface with HOBO stations
Screw terminal for connecting to sensors
HOBO RX3000 and U30 stations have room for two adapters
Use with HOBO USB Micro Station and HOBO MicroRX Station requires Smart Sensor Consolidator Box (S-ADAPT-6) and an extension cable.
Represents one data input channel
