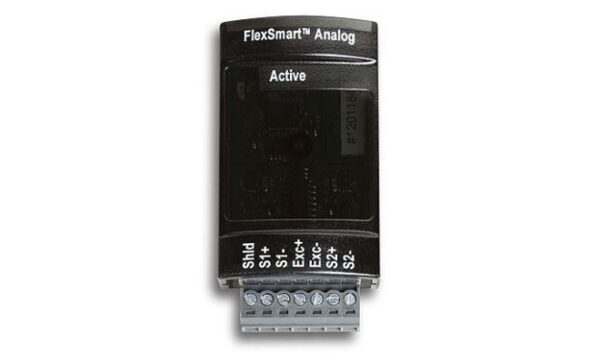

FlexSmart Analog Module (2 channels) Sensor

Name: FlexSmart Analog Module (2 channels) Sensor
SKU: 1356
Availability: InStock

₹23,000.00

Specifications

Input channels: 2 single-ended
User-configurable ranges: 0-20mA, 0-20VDC (suitable for 2.5, 5, and 10V sensors)
Accuracy: ±0.25% FS over range selected from 50mV to FS
A/D accuracy: ±0.05%
A/D drift: 5 ppm/°C
Resolution: 12-bit
Excitation power: 12V DC @ up to 200mA switched, with up to 2-minute warm-up in 5 msec increments
Field wiring: 2- or 3-wire via screw terminals

Category: Applications Tags: FlexSmart Analog Module (2 channels) Sensor, S-FS-CVIA

Description
Reviews (0)

Description

Overview

For use with the H22 Energy Logger, this module handles two single-ended input channels with user-configurable ranges of 0 to 20mA DC or 0 to 20 V DC, which is suitable for 2.5-, 5-, and 10-volt sensors. Field wiring is 2- or 3-wire via screw terminals.

Features

2 input channels of 0-20mA and/or 0-20 VDC
Provides 12V sensor excitation and user-configurable warm-up

Reviews

There are no reviews yet.

Be the first to review “FlexSmart Analog Module (2 channels) Sensor”
