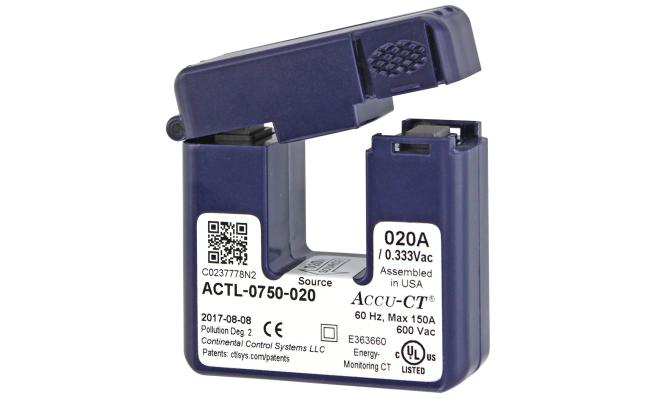

20 Amp Accu-CT Split-Core Current Transformer 333mV Sensor

Specifications

Accuracy: ±0.75% from 1% to 120% of rated primary current
Phase angle: ±0.5 degrees (30 minutes) from 1% to 120% of rated current
Accuracy standards: IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
Primary rating: 5 to 250 Amps, 600 Vac, 60 Hz nominal
Output: 333.33 mVac at rated current
Operating temperature: -30°C to 55°C
Safe: integral burden resistor, no shorting block needed, unlessotherwise noted
Standard lead length: 8 ft (2.4 m), 20 AWG
UL recognized, CE mark, RoHS
Assembled in USA: qualified under Buy American provision in ARRA of 2009

Width: 2.38 inches
Height: 2.40 inches
Thickness: 0.90 inches
Window: 0.78 inches
