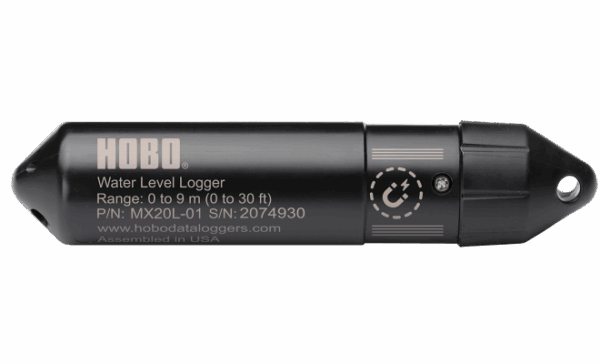

HOBO MX Water Level Data Logger

₹74,500.00

HOBO MX Water Level Data Logger

Name: HOBO MX Water Level Data Logger
SKU: 1448
Availability: InStock

₹74,500.00

Specifications

Pressure (Absolute) and Water Level Measurements MX20L-01

Operation Range: 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 207 kPa, 0° to 40°C (10 to 30 psia, 32° to 104°F)
Burst Pressure: 310 kPa or 18 m depth (45 psia or 60 ft depth)
Water Level Accuracy*: Typical error: ±0.1% FS, 1.0 cm (0.03 ft) Water
Maximum error: ±0.2% FS, 2.0 cm (0.06 ft) Water
Raw Pressure Accuracy**: ±0.3% FS, 0.62 kPa (0.09 psi) Maximum error
Resolution: <0.02 kPa Water (0.007 ft Water)
Pressure Response Time (90%)***: <1 second at a stable temperature; measurement accuracy also depends on temperature response time

Pressure (Absolute) and Water Level Measurements MX20L-02

Operation Range: 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F)
Burst Pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) Depth
Water Level Accuracy*: Typical error: ±0.1% FS, 3.0 cm (0.1 ft) Water
Maximum error: ±0.2% FS, 6.0 cm (0.2 ft) Water
Raw Pressure Accuracy**: ±0.3% FS, 1.20 kPa (0.17 psi) Maximum error
Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) Water
Pressure Response Time (90%)***: <1 second at a stable temperature; measurement accuracy also depends on temperature response time

Pressure (Absolute) and Water Level Measurements MX20L-04

Operation Range: 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) Depth
Water Level Accuracy*: Typical error: ±0.1% FS, 0.4 cm (0.013 ft) Water
Maximum error: ±0.2% FS, 0.8 cm (0.026 ft) Water
Raw Pressure Accuracy**: ±0.3% FS, 0.43 kPa (0.063 psi) Maximum error
Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) Water
Pressure Response Time (90%)***: <1 second at a stable temperature; measurement accuracy also depends on temperature response time

Categories: Products, Underwater Tags: HOBO MX Water Level Data Logger, MX20L

Description
Reviews (0)

Description

A low-cost, research-grade data logger with Bluetooth data offload to continuously monitor water level and temperature. Measures at depths of up to 13, 30, or 100 feet in a wide range of underwater environments, both freshwater and saltwater.

Overview

The MX20L Water Level Logger brings you all the same great features as the U20L and more!

Integrating Bluetooth for fast and reliable data download, the MX20L logger eliminates the need to plug your logger into a base station or shuttle to offload data in the field, ensuring continuous water level and temperature monitoring. With options to measure at depth ranges of 13, 30, or 100 feet in a wide range of underwater environments, this rugged logger features 0.1% measurement accuracy, a durable polypropylene housing for use in both freshwater and saltwater, and a non-vented design for convenient and reliable deployment.

The MX20L comes with a magnetic activation fob that can “wake up” the logger to activate its Bluetooth communication for configuration and data download. The included fob comes with a lanyard to prevent losing or dropping the fob in the field. You can purchase additional activation fobs HERE.

This logger records absolute pressure, which is later converted to water level readings by our HOBOconnect software. To compensate for barometric pressure changes, you can use another HOBO MX20L Water Level logger as a barometric reference. See our FAQ section for more information.

Features

Self-contained, non-vented design enables easy deployment
Ideal for use in both freshwater and saltwater environments, including wells, streams, lakes, wetlands, and tidal areas
Depth measurement options of up to 13, 30, or 100 feet depending on model
Durable ceramic pressure sensor withstands freezing

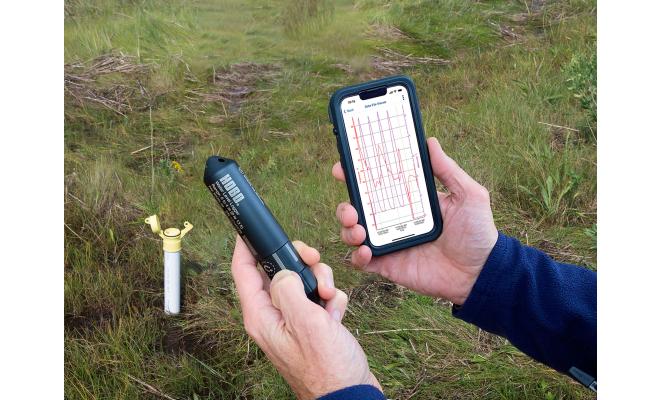

Streamlined data offload via Bluetooth to the free HOBOconnect app
HOBOconnect app provides easy extraction and visulization of water level data
Extended battery life up to 10 years (power-saving mode requires magnetic fob to activate Bluetooth for data download)

Note: A calibration certificate is not offered for this logger. If you require a NIST-traceable calibration certificate, please see the U20-001-01 (freshwater) or U20-001-01-Ti (saltwater).
