HOBO Water Level Data Logger

₹73,600.00

HOBO Water Level Data Logger

Name: HOBO Water Level Data Logger
SKU: 1453
Availability: InStock

₹73,600.00

Specifications

Pressure (Absolute) and Water Level Measurements U20L-01

Operation Range: 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 207 kPa, 0° to 40°C (10 to 30 psia, 32° to 104°F)
Burst Pressure: 310 kPa or 18 m depth (45 psia or 60 ft depth)
Water Level Accuracy*: Typical error: ±0.1% FS, 1.0 cm (0.03 ft) water
Maximum error: ±0.2% FS, 2.0 cm (0.06 ft) water
Raw Pressure Accuracy**: ±0.3% FS, 0.62 kPa (0.09 psi) maximum error
Resolution: <0.02 kPa water (0.007 ft water)
Pressure Response Time (90%)***: <1 second at a stable temperature; measurement accuracy also depends on temperature response time

Pressure (Absolute) and Water Level Measurements U20L-02

Operation Range: 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range: 69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F)
Burst Pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy*: Typical error: ±0.1% FS, 3.0 cm (0.1 ft) water
Maximum error: ±0.2% FS, 6.0 cm (0.2 ft) water
Raw Pressure Accuracy**: ±0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%)***: <1 second at a stable temperature; measurement accuracy also depends on temperature response time

Categories: Products, Underwater Tags: HOBO Water Level Data Logger, U20L-01, U20L-02, U20L-04, U20L-0x

Description
Reviews (0)

Description

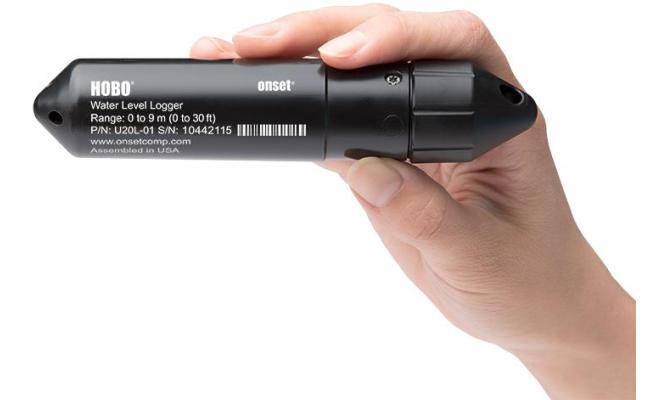

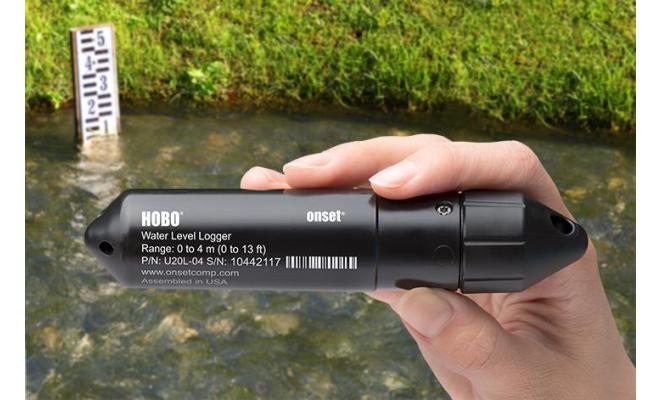

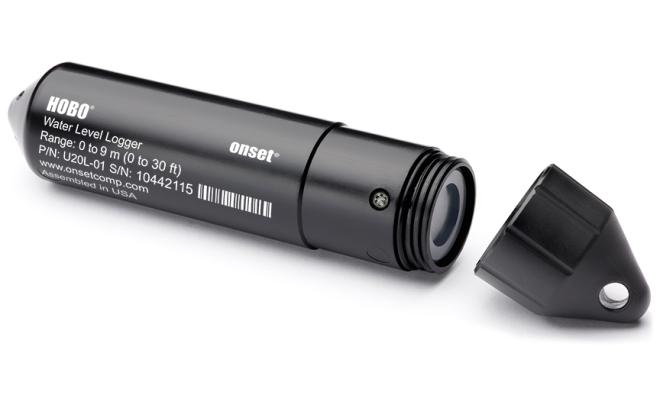

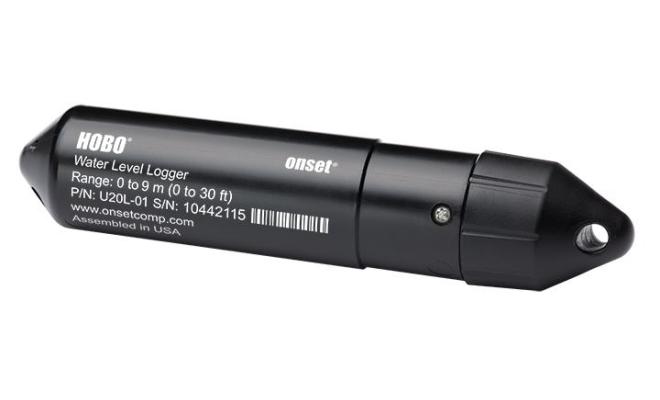

A low-cost, research-grade data logger for continuous monitoring of water level and temperature at depths of up to 13, 30, or 100 feet in a wide range of underwater environments; for use in freshwater or saltwater.

Overview

A low-cost, research-grade data logger for continuous monitoring of water level and temperature at depths of up to 13, 30, or 100 feet in a wide range of underwater environments. This logger features 0.1% measurement accuracy, a polypropylene housing for use in both freshwater and saltwater, and a non-vented design for convenient and hassle-free deployment.

Features

Self-contained, non-vented design enables easy deployment
Ideal for use in both freshwater and saltwater environments, including wells, streams, lakes, wetlands, and tidal areas
Depths up to 13, 30, or 100 feet depending on model
Durable ceramic pressure sensor withstands freezing
HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature, and water density

Note: A calibration certificate is not offered for this logger. If you require a NIST-traceable calibration certificate, please see the U20-001-01 (freshwater) or U20-001-01-Ti (saltwater).
