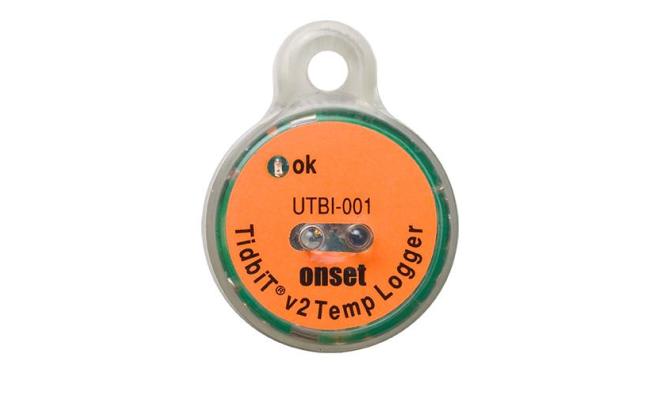

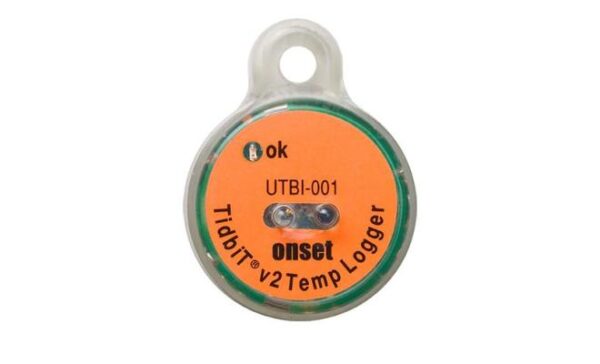

HOBO TidbiT v2 Water Temperature Data Logger

₹31,000.00

HOBO TidbiT v2 Water Temperature Data Logger

Name: HOBO TidbiT v2 Water Temperature Data Logger
SKU: 1312
Availability: InStock

₹31,000.00

Specifications

Temperature Sensor

Operation Range*: -20° to 70°C in air; (-4° to 158°F in air;)
maximum sustained temperature of 30°C (86°F) in water*
Accuracy: ±0.21°C from 0° to 50°C , see manual for plot (±0.38°F from 32° to 122°F)
Resolution: 0.02°C at 25°C (0.04°F at 77°F )
Response Time: 5 minutes in water; 12 minutes in air moving 2 m/sec;
20 minutes in air moving 1 m/sec (typical to 90%)
Stability (Drift): 0.1°C per year (0.18°F per year)

Logger

Real-time Clock: ±1 minute per month 0° to 50°C (32° to 122°F)
Battery: 3 Volt lithium, non-replaceable
Battery Life (Typical Use): 5 years with 1 minute or greater logging interval
Memory (Non-volatile): 64K bytes memory (approx. 42,000 12-bit temperature measurements)
Weight: 19.6 g (0.69 oz)
Dimensions: 3.0 × 4.1 × 1.7 cm (1.2 × 1.6 × 0.68 in.); mounting bail 4.6 mm (3/16 in.) diameter hole
Wetted Materials: Epoxy case
Waterproof: To 305 m (1000 ft.)
Logging Interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to HOBOware software manual.
Launch Modes: Immediate start, delayed start, triggered start
Offload Modes: Offload while logging; stop and offload
Battery Indication: Battery level can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating: IP68
NIST Certificate: Available for additional charge

Categories: Outdoor, Products Tags: HOBO TidbiT v2 Water Temperature Data Logger, outdoor, UTBI-001

Description
Reviews (0)

Description

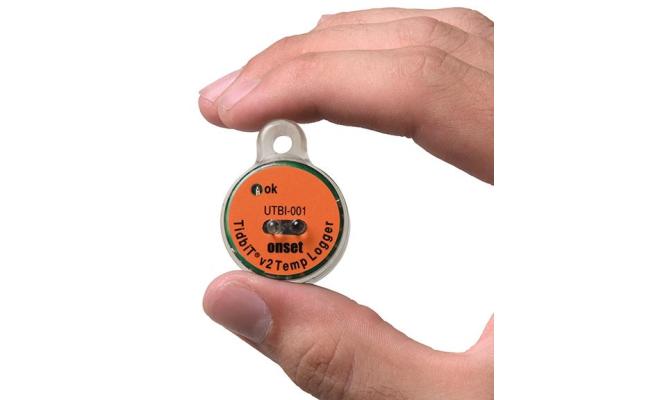

Only 3×4 cm, the tiny waterproof TidbiT v2 data logger measures temperatures over a wide range, providing 12-bit resolution and ±0.2 °C accuracy.

Overview

Only 3×4 cm, this tiny data logger measures temperatures over a wide range, providing 12-bit resolution and ±0.2 °C accuracy. Designed for outdoor and underwater environments, this logger is waterproof to 300 m (1000 ft). An optical USB interface lets you offload data in seconds.

Please note: A solar radiation shield is required to obtain accurate air temperature measurements in sunlight (assembly-required RS1 Solar Radiation Shield or pre-assembled M-RSA Solar Radiation Shield).

Features

Onset’s smallest temperature data logger
Waterproof to 300 meters (1,000 feet)
Data readout in less than 30 seconds via fast Optic USB interface
