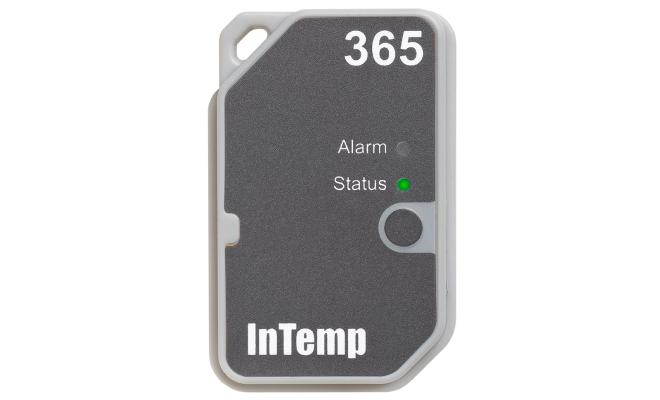

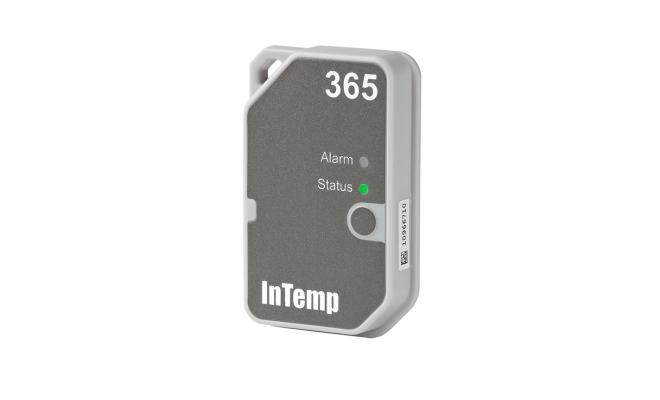

InTemp 365-Day Temperature Logistics Monitoring (CX503)

21,000.00

InTemp 365-Day Temperature Logistics Monitoring (CX503)

21,000.00

Specifications
Temperature Sensor

Range: -30° to 70°C (-22° to 158°F)
Accuracy: ±1.0°C from -30° to -5°C (±1.8°F from -22° to 23°F)
±0.5°C from -5° to 50°C (±0.9°F from 23° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
Resolution: 0.04°C (0.072°F)

Logger

Logger Operating Range: -30° to 70°C (-22° to 158°F)
NIST Calibration: Three-point NIST calibration, probe only @ -10C, 25C, and 55C
Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Type: Multiple Use
Duration: Up to 1 year
Shelf Life: Up to 1 year
Logging Rate: 1 second to 18 hours
Battery: CR2450 3V lithium, not replaceable. Battery life is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Memory: 14,000 measurements
Full Memory Download Time: Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions: 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight: 25.5 g (0.90 oz)
Environmental Rating: IP67

Add to Wishlist
Add to Wishlist

Description

GXP compliant temperature IoT data logger ideal for Life Science and Pharmaceutical Cold Chain logistics for frozen to ambient conditions. Ideal applications: General pharmaceutical and vaccine shipment and warehouse monitoring. Meets global Cold Chain, FDA, and EU regulatory requirements.

Overview

The InTemp CX503 Bluetooth data logger is a multiple-use logger that records temperature data for up to a year. Designed for Cold Chain, CRT, and Frozen shipments, the CX503 is ideal for closed-loop monitoring applications, as well as qualification testing and equipment validation.

Using the InTemp app on your mobile device, you can easily configure the CX503 with one of multiple preset configurations, or set up a custom configuration. The logger has a built-in alarm to alert you of excursions. Logger reports can be quickly downloaded to your phone or tablet and uploaded to an InTempConnect® account, where you can analyze and export data as needed.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the InTemp CX Gateway

A 3-Point Certificate of Calibration, valid for one year from date of purchase, provides assurance that the data can be trusted when making important product-disposition decisions.



Learn more about our compatible mobile and cloud solutions:

InTempConnect A cloud-based data command-center control for monitoring all loggers throughout your global supply chain, including configuration, user management & data reporting

InTemp App A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect

InTempVerify A free mobile app that enables data downloads by anyone—anywhere, anytime





Features
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • Enables fast, remote data transfer; ideal for clinical logistics
  • Eliminates need to open sealed containers to retrieve data
  • Real-time alerts and automatic data downloads with optional InTemp CX Gateway device
  • Shortens logger-handling times; no PC or cables required
  • Ensures secure data via encrypted technology
  • Meets GDP requirements for NIST traceable calibration
