InTemp Temperature Storage Monitoring with Probe in Glycol (CX402 Glycol)

55,700.00

InTemp Temperature Storage Monitoring with Probe in Glycol (CX402 Glycol)

55,700.00

Specifications
External Temperature Probe

Accuracy: ±1.0°C from -40° to -25°C (±1.8°F from -40° to -13°F)
±0.5°C from -25° to 80°C (±0.9°F from -13° to 176°F)
±1.0°C from 80° to 100°C (±1.8°F from 176° to 212°F)
Resolution: 0.024°C at 25°C (0.04°F at 77°F)
Operating Range: -40° to 100°C (-40° to 212°F)
NIST Calibration: CX40x-Txx and CX402-BxM: Single point NIST calibration, probe and logger body
CX40x-VFCxxx: Single point NIST calibration, probe only
CX403: Single point NIST calibration
Cable Length: 2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable

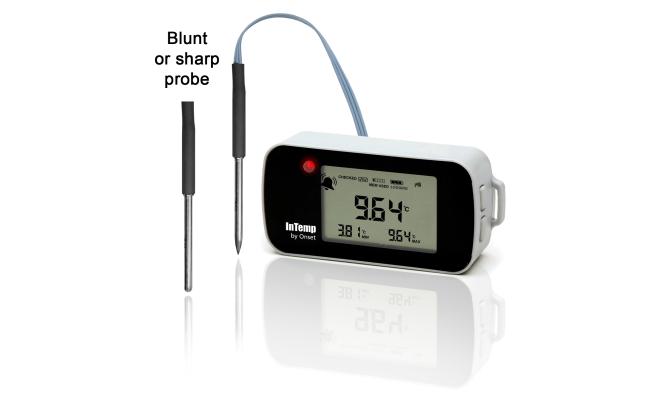

Probe Dimensions: Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter

Temperature Sensor

Range: -30° to 70°C-22° to 158°F
Accuracy: ±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
Resolution: 0.024°C at 25°C (0.04°F at 77°F)

Logger

Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range: -30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
Logging Rate: 1 second to 18 hours

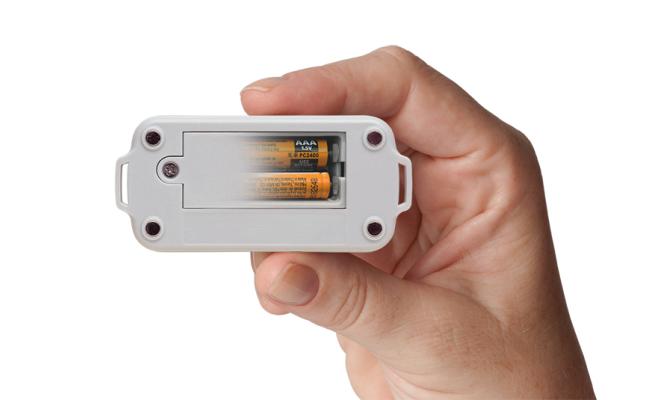

Battery Type: Two AAA batteries, user replaceable
Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
Memory: 128 KB (84,650 measurements, maximum)
Full Memory Download Time: Approximately 60 seconds; may take longer the farther the device is from the logger
LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensions: 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
Weight: 90.2 g (3.18 oz)
Environmental Rating: IP54

Add to Wishlist
Add to Wishlist

Description

GDP/GMP compliant temperature data logger ideal for Healthcare and Life Science/Pharmaceutical storage monitoring. Ideal applications: General pharmaceutical and vaccine storage, refrigerator, freezer, chamber, and cold room storage monitoring. Meets global Cold Chain, FDA, and EU regulatory requirements.

Overview

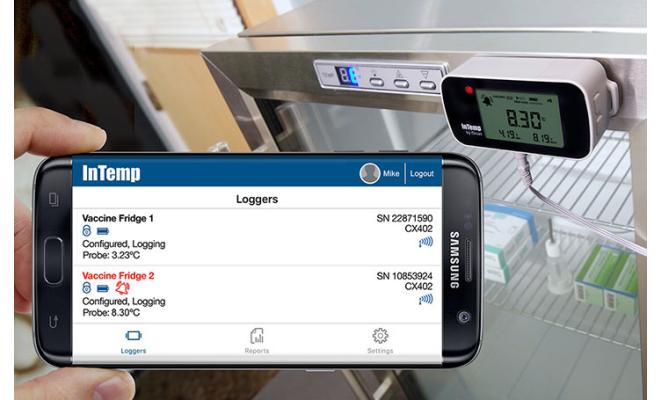

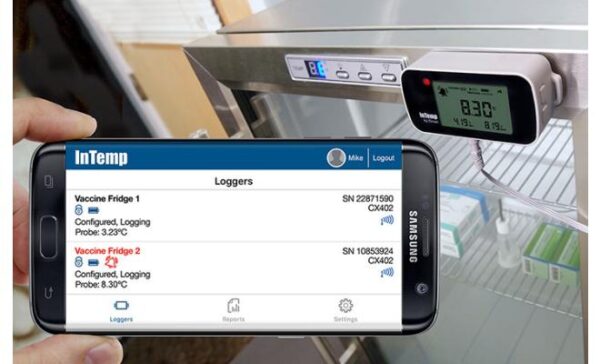

InTemp CX402-Txxx (with Glycol Bottle) data loggers monitor temperatures in refrigerators, freezers and other temperature-controlled environments to comply with global GDP requirements. The loggers communicate wirelessly via Bluetooth to mobile devices. Using the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports for streamlined reporting and regulatory compliance. All loggers feature a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities for notification of temperature excursions, an internal sensor for ambient temperature monitoring, and a single-point NIST Certification of Calibration for both the logger body and probe.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.

Models are available with a 2- or 4-meter external temperature probe attached to a Glycol bottle used to insulate the probe and delay thermal response times.



Features
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution

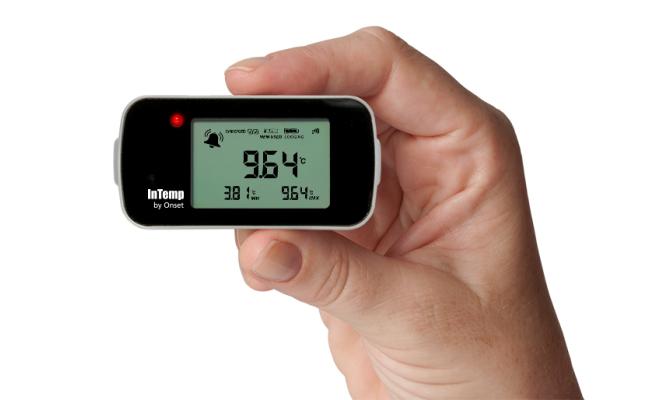

  • Easy-to-read display with current and daily min/max temperatures
  • Bluetooth transmission of data and alarm states
  • Logger setup and download of data in seconds – without a PC or cable
  • Real-time alerts and automatic data downloads with optional CX Gateway device
  • +/- 0.5C accuracy for reliable temperature readings
  • Battery-powered to guard against local power loss
  • Several Glycol bottle/probe-only options available
  • Includes 1-year NIST calibration, per USP guidelines

Who is this for?

The InTemp CX402-Txxx data logger (with probe in glycol) is right for you if:

  • You work for an organization that’s required to primarily follow GDP/GMP, FDA, USP, and/or EU/CE guidelines for monitoring ambient to frozen temperatures
  • Your organization is a pharmaceutical manufacturer, third-party logistics company, Life Science/Biotech storage and transportation company, or other organization looking to monitor temperature-sensitive goods
  • You need a 1-Year NIST-certified data logger (probe and ambient temperature sensor), as recommended by the previously mentioned regulatory bodies

Required to follow GDP & GMP requirements, specifically:

  • Probe in glycol
  • GDP/GMP compliant
  • Frozen to ambient monitoring
