Type K 12″ Probe Thermocouple Sensor

16,200.00

Specifications

Range & Accuracy:
0 to 293°C (32° to 559°F) – +/- 2.2°C (+/- 4°F) accuracy ± data logger accuracy
293°C to 900°C (559° to 1650°F) – +/- 0.75% accuracy ± data logger accuracy
High-temperature stainless steel probe: Type K
Dimensions: 12″ 304 stainless-steel probe; 3/16″ diameter with isolated thermocouple
1″ Handle with spring-type strain relief
6′ 19-AWG cable

***Probe is rated up to 900°C (1650°F) continuous, and 1235°C (2282°F) for one hour exposures

Add to Wishlist
Add to Wishlist

Description

A Type K thermocouple probe that can measure up to 900°C (1650°F) when connect to the HOBO UX100 thermocouple logger.

Overview

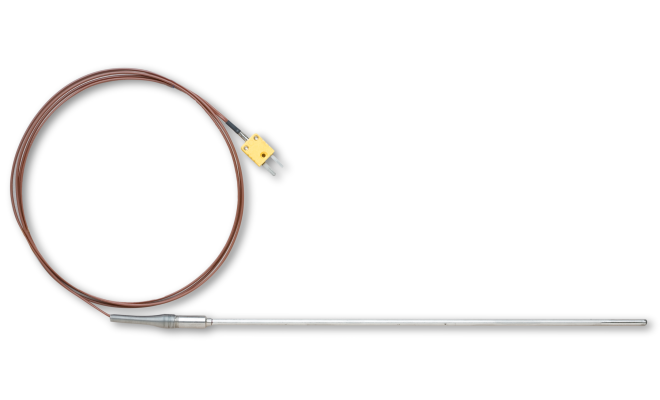

A Type K thermocouple probe that can measure up to 900°C (1650°F) when connect to the HOBO UX100 thermocouple logger. The stainless-steel probe is 30cm (12″) in length and 0.5cm (3/16″) in diameter, and is mounted on a 2.5cm (1″) handle with spring-type strain relief. The 1.8m (6 foot) 19-AWG cable meets ANSI specifications, complete with isolated thermocouple color-coding for type K (yellow) thermocouples.



Features
  • High-temperature stainless-steel probe
  • 19-AWG cable
  • Response range of 0°C to 900°C (32°F to 1650°F)
