InTemp Ultra-low Temperature Storage Monitoring with RTD Probe (CX405)

47,500.00

Specifications
External Temperature Probe

Range: -95° to 50°C (-139° to 122°F)
Accuracy: ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
NIST Calibration: Two-point NIST calibration, probe only
Cable Length: 1.5m (4.92 ft)

Internal Temperature Sensor

Range: -30°C to 70°C (-22°F to 158°F)
Resolution: 0.024°C at 25°C (0.04°F at 77°F)
Accuracy: ± 0.5°C from -15° to 70°C (±0.9°C from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)

Logger

Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range: -30° to 70°C, 0 to 95% RH (non-condensing) (-22° to 158°F, 0 to 95% RH (non-condensing))
Logging Rate: 1 second to 18 hours
Battery Type: Two AAA batteries, user replaceable
Battery Life: 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the app, excessive report generation, numerous audible alarms, and paging all impact battery life.

Add to Wishlist
Add to Wishlist

Description

GDP/GMP compliant temperature data logger ideal for Healthcare and Life Science/Pharmaceutical storage monitoring. Ideal applications: Pharmaceutical and vaccine dry-ice storage, ultra-low chambers, cold rooms and walk-in freezers, and COVID vaccine monitoring. Meets global Cold Chain, FDA, and EU regulatory requirements.

Overview

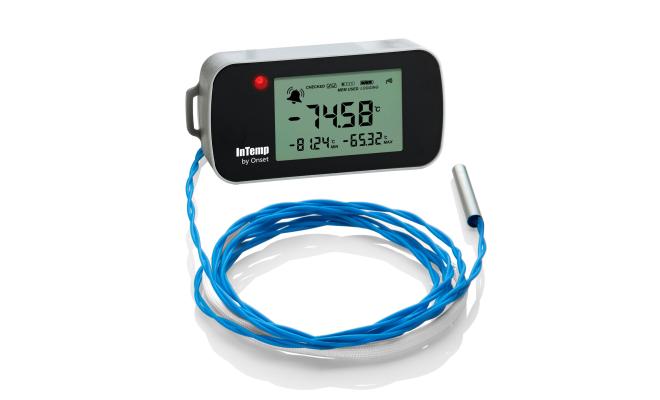

The InTemp CX405-RTD Dry Ice data logger is specifically designed for ultra-low temperature monitoring of vaccines and pharmaceuticals in storage and transportation environments. Using Bluetooth technology, it wirelessly communicates with the InTemp CX Gateway and/or the free InTemp mobile app, which send data to the free InTempConnect cloud platform. Its built-in 1.5 m external probe can measure temperatures as low as -95°C (-139°F) and up to 50°C (122°F) with a high degree of accuracy, and a protective sheath prevents accidental cutting of the probe cable. Includes a clip for secure mounting.

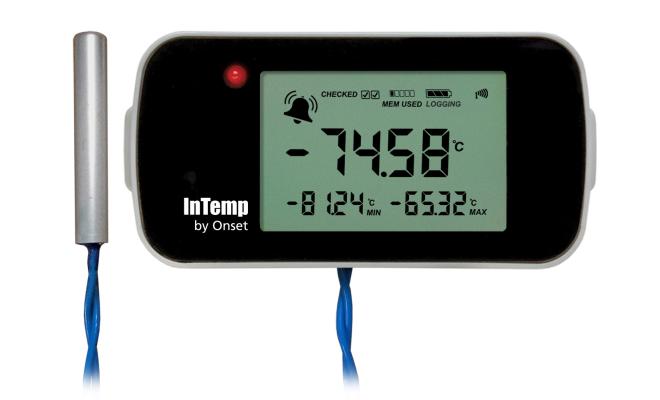

This dry ice data logger also features a built-in LCD display to view temperature readings, visual and audible alarms, and battery level – plus the ability to view and display the minimum and maximum readings.

By adding the InTemp Gateway, users can get text or email notifications of temperature excursions, as well as automatic data downloads from loggers within range of the CX Gateway device.



Learn more about our compatible mobile and cloud solutions:

InTempConnect A cloud-based data command-center control for monitoring all loggers throughout your global supply chain, including configuration, user management & data reporting

InTemp App A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect

InTempVerify A free mobile app that enables data downloads by anyone—anywhere, anytime





Features

• Two-point NIST Certificate of Calibration (probe only), good for one year
• Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
• Easy logger setup and data download in seconds
• Advanced audible and visual alarm capabilities for notification of temperature excursions
• LCD display with current and daily min/max temperatures
• Protective, anti-cut cable sheath
• User-replaceable AAA batteries to guard against local power loss
• Built to FDA, USP, EU, and WHO standards
• Free InTemp mobile app to configure logger, view data, and access the free InTempConnect cloud software service
• Real-time alerts and automatic data downloads with optional InTemp CX Gateway device

Who is this for?

Required to follow GDP & GMP requirements, specifically:

  • Ultra-low RTD probe (no glycol bottle)
  • GDP/GMP compliant
  • Ultra-low dry ice to refrigerated monitoring
